External Devices

External devices are non-robot device such as conveyor, elevator, etc. External devices are implemented using BP (Blueprint) to allow easy editing by non-engineers. Each external device is a child class of BP_ExternalDeviceBase, which is a child class of RRBaseRobot. This setup provides ROS2Node and ROS2Interface functionalities.

External devices can be place from editor or spawned from ROS 2 /SpawnEntity .

Following devices only has basic setting such as primitive meshes as visual. It is expected that user create child class and change visual mesh, collision size and etc.

Base Class

Overview

Base class is parent class of other External Device BP classes and have common functionalities.

Base ROS Interfaces

UE external components have ROS 2 Interface which provide

  • ROS2 Topic Interface: Two main interface based on modes
    • Low level interface

      e.g. velocity input and sensor

      It allow user to create custom behavior of devices

    • Preset action

      e.g. move pallet from entrance A to entrance B

      It allow user to test integration with just trigger action. It is also useful to speed up simulation since all logic inside UE.

  • Parameters:
    • Normal Parameters

      e.g. velocity

      Parameters which can be changed at runtime.

    • Spawn Parameters

      e.g. size, floor height

      Parameters which can’t be changed after spawn. Pose and ROS namespace are includes as ue_msgs/SpawnEntity.srv.

Base UE functions

  • ParamParser and ParamParserImpl:

    These handle JSON parameter parsing. When spawned from ROS, ParamParser is called from BPInitParamParser. When spawned from Unreal Engine (UE), such as when placed from the editor, ParamParser is called from the Initialize function. It is expected that parameters will be overwritten by the editor as normal UE Actors.

  • InitializeChildActor:

    Some external devices contain other devices as child actors. For example, a vertical conveyor may have an elevator and conveyors as child actors. The initialization of these child actors, such as passing parameters and setting relative positions, is performed here.

  • Construction Script:

    The construction script calls three functions: 1. InitializeChildActor 2. Initialize 3. PostInitialize

Parameters for BP_ExternalDeviceBase

Param Name

Type (Default)

Note

ROS JSON SPAWN PARAMETER

/debug

bool (false)

Mainly used to print debug logs.

/mode

int (0)

Modes such as manual or automatic.

/disable_physics

bool (true)

Disables physics of the target object during operation.

/size

dict {x:1, y:1, z:1}

Scale of the external device.

BP PARAMETER

ParseParamFromJSON

bool (true)

Parse parameters from JSON.

DebugParamParser

bool (false)

Used for debugging the JSON Param Parser.

TestJsonInput

string (‘’)

Test JSON input for debugging.

Conveyor

Overview

The conveyor has collision meshes set to OverlapAll. It moves objects with a given velocity that overlap with the meshes.

There are two main conveyor types:

  • BP_Conveyor: A simple straight conveyor.

  • BP_SplineConveyor: A conveyor that moves along a spline curve.

The conveyor can be controlled by velocity input and has two sensors to detect objects.

../_images/conveyor_ue.png

Figure : Conveyor

Conveyor Parameters

Param Name

[UE name if it is not pascal case of ROS one]

Type (Default)

Note

ROS JSON SPAWN PARAMETER

/mode

int32 (0)

  1. Move until payload exits the area

  2. Move until it hits the entrance sensor.

/sensor1_transform
transform
{
    "position": {"x": 97.5, "y": 0, "z": 0},
    "rotation": {"x": 0, "y": 0, "z": 0},
    "size": {"x": 0.05, "y": 1, "z": 0.5}
}

Relative transform of sensor1.

/sensor2_transform
transform
{
    "position": {"x": -97.5, "y": 0, "z": 0},
    "rotation": {"x": 0, "y": 0, "z": 0},
    "size": {"x": 0.05, "y": 1, "z": 0.5}
}

Relative transform of sensor2.
/vel

[Speed]

float (1.0 m/s)

Conveyor speed.
/sensor_length

(BP_Conveyor)

float (0.1 m)

Sensor area length.
/points

(BP_SplineConveyor)
json
{
    "position": null,
    "rotation": null,
    "arrive_tangent": null,
    "leave_tangent": null,
    "scale": null
}

Spline points for curve creation.

BP PARAMETER

Tag

string (‘Payload’)

Actors with this tag are conveyed.

ROS 2 API for Conveyor

Topic Name

Msg Type

Note

SUBSCRIBE

/set_vel

example_interfaces/msg/Float32

Conveyor speed. Can be positive or negative.

/set_mode

example_interfaces/msg/Int32

Sets mode: 0: Move until payload exits area 1: Move until it hits the entrance sensor.

PUBLISH

/entrance

example_interfaces/msg/Int32MultiArray

Size = 2. 0: No object, 1: Object detected.

Elevator

Overview

Elevators consist of containers that move between floors. The containers can have doors and conveyors inside to automatically move payloads.

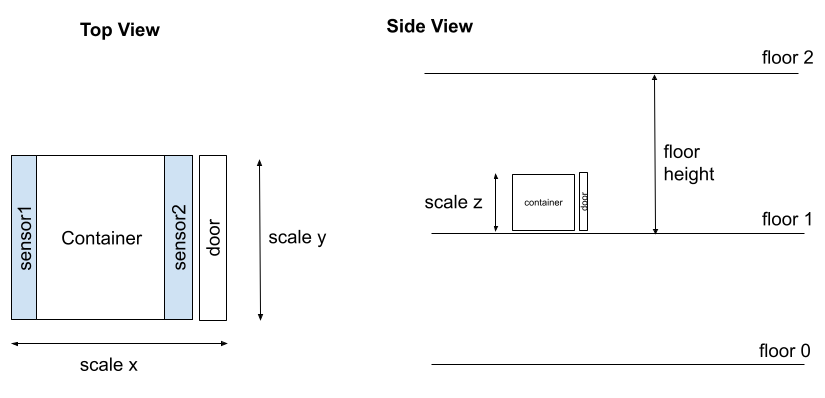

../_images/elevator_ue.png

Figure : Elevator

Elevator Parameters

Param Name

[UE name if it is not pascal case of ROS one]

Type (Default)

Note

ROS JSON SPAWN PARAMETER

/mode

int (1)

  1. Manual mode: Control elevator and doorby velocity input

  2. Normal mode: Control elevator and door by /move_to and /open_door

  3. Auto Move Return mode: Elevator moves to another floor specified in /auto_target_floors when the payload enters and returns to the original floor when objects go outside of the elevator.

/floor_height

float (5.0 m)

Floor height.

/floors

int [2]([0, 1])

Floor numbers.
/doors

[Open Front Door by Floor]

bool[2] ([true, false])

Door presence.
/door

[Has Door]

bool (true)

Door presence.
/door_vel

[Back/Front Door Speed]

float (0.3 m/s)

Door speed.

/initial_floor

int (0)

Initial floor.

/auto_target_floors

int [2]([0, 1])

Auto mode target floors.
/vel

[Elevator Speed]

float (3.0 m/s)

Elevator speed.

ROS 2 API for Elevator

Topic Name

Msg Type

Note

SUBSCRIBE

/set_mode

example_interfaces/msg/Int32

  1. Manual mode: Control elevator and doorby velocity input

  2. Normal mode: Control elevator and door by /move_to and /open_door

  3. Auto Move Return mode: Elevator moves to another floor specified in /auto_target_floors when the payload enters and returns to the original floor when objects go outside of the elevator.

/set_vel

example_interfaces/msg/Float32

  • Mode==0: Move the container. can be +-

  • Mode > 0: set vel which is used to /move_to and automovement.

/set_front_door_vel

example_interfaces/msg/Float32

  • Mode==0: Move the door. can be +-

  • Mode > 0: set vel which is used to /move_to and automovement.

/set_back_door_vel

example_interfaces/msg/Float32

  • Mode==0: Move the door. can be +-

  • Mode > 0: set vel which is used to /move_to and automovement.

/set_door_vel

example_interfaces/msg/Float32

  • Mode==0: Move the door. can be +-

  • Mode > 0: set vel which is used to /move_to and automovement.

/open_door

example_interfaces/msg/Bool

Opens or closes the doors.

/move_to

example_interfaces/msg/Int32

Close door, move to the specified floor and open door.

/set_auto_target_floors

example_interfaces/msg/Int32MultiArray [2]

Set the target floors for auto mode.

PUBLISH

/current_floor

example_interfaces/msg/Int32

Current floor. If the floor is moving, it will show the last known floor.

/door_status

example_interfaces/msg/Bool

Door status. True = open, False = closed.

SERVICE

/get_door_status

ue_msgs/srv/GetBoolFromId

Returns whether the door is open or not.

/get_current_floor

ue_msgs/srv/GetInt32FromId

Returns the current floor.

/move_to

ue_msgs/srv/SetInt32

Close door, move to the specified floor and open door.

/open_door

ue_msgs/srv/SetInt32

Opens or closes the doors.
Todo

  • Support multiple type of doors

  • Multiple door location for each floor

  • Test spawning from ROS 2.

Vertical Conveyor

Overview

The vertical conveyor is a combination of a conveyor and an elevator. It allows for the vertical transport of payloads between multiple levels, and each level can have its own entrance and exit conveyors.

../_images/vertical_conveyor_ue.png

Figure : Vertical Conveyor

Vertical Conveyor Parameters

Param Name

Type (Default)

Note

ROS JSON SPAWN PARAMETER

/floor_height

float (10 m)

Distance between floors.

/entrances

int32 [4]([false, true, false, true])

Define if each entrance is active. 0. no entrance, 1. entrance active.

/target_entrance

int8 [2]([0, 1])

Target entrance, [in, out].

/elevator

string (‘’)

JSON spawn parameter to pass to the child elevator actor.

/entrance

string (‘’)

JSON spawn parameter to pass to child entrance conveyor actors.

BP PARAMETER

EntranceActorClass

ActorClass(BP_Conveyor)

Entrance conveyor class

ROS 2 API for Vertical Conveyor

Topic Name

Msg Type

Note

/set_target_entrance

example_interfaces/msg/Int32MultiArray [2]

Sets the target entrance, [in, out].
Todo

  • Support different parameter settings for each entrance.

  • Test spawning from ROS 2.

Mobile Rack

Overview

The mobile rack is a combination of rack units. User can move unit racks to make path for robot.

../_images/mobile_rack_ue.png

Figure : Mobile Rack

Rack Unit Parameters

Param Name

Type (Default)

Note

ROS JSON SPAWN PARAMETER

/layer_num

int (4)

Number of Rack layers.

/layer_height

float (2m)

Height of each layer.

/plate_num

vector2d ({x: 1, y: 2})

Number of plate in each layer.

/plate_dim

vector ({x: 1.5, y: 2.5, z: 0.1})

Plate dimension.

/plate_spacing

vector2d ({x: 0.2, y: 0.0})

Spacing between plates.

/spot_num_per_plate

int (2)

Number of spots in each plate. Spot can be used as a target for pick/drop.

/spot_spacing_from_plate_edge

float (0.65m)

Spacing between spot and plate edge.

/has_approach_spot

dict {Front: true, Rear: true}

Approach spot presence. Spot can be used as a target for robot movement.

/approach_distance

dict {Front: 1.5, Rear: 1.5}

Approach spot distance from the rack.

/has_mesh

dict {Foot: true, Side: true, Back: true}

Mesh presence.

/meshe

dict {Plate: None, Pillar: None, Foot: None, Side: None, Back: None}

Meshes for each part. If it is None, default shape is created with primitives. (* not supported to set from ROS yet.)

/material

string(‘None’)

Material for each part. If it is None, default material is used. (* not supported to set from ROS yet.)

/has_bottom_layer

bool (true)

Bottom layer presence.

/has_collision

bool (true)

Collision presence. This collision is used to move payload when rack is moving. This should be true for unit rack of mobile rack.

/allow_path_bottom

bool (false)

Allow path from bottom. If true, robot can pass through the bottom of the rack.

Mobile Rack Parameters

Param Name

Type (Default)

Note

ROS JSON SPAWN PARAMETER

/unit_num

int (3)

Number of Rack Units.

/unit_spacing

float (0.2m)

Spacing between rack units.

/path_width

float (3.5m)

Path width

/begin_edge

bool (true)

Begin edge presence

/end_edge

bool (true)

End edge presence

/initial_path_index

int (0)

Initial path index.

/speed

float (m/s)

moving speed of rack units.

/unit_rack_param

Json(Rack Unit Parameters)

Rack parameter

/begine_edge_rack_param

Json(Rack Unit Parameters)

Begin Edge Rack parameter

/end_edge_rack_param

Json(Rack Unit Parameters)

End Edge Rack parameter

ROS 2 API for Mobile Rack

Topic Name

Msg Type

Note

SUBSCRIBE

/open

example_interfaces/msg/Int32

Open path at index.

PUBLISH

/path

example_interfaces/msg/Int32

Current path index. If racks are moving, it will be -1
Todo

  • Test spawning from ROS 2.
